Molybdenum Disilicide Heating Element - MoSi2 Rod

Molybdenum dicilicide heating element is widely used as heating element as for its excellent properties in the high temperature and cheap price.

The following is the detail information of MoSi2 rod:

Purity of Mo:≥99.95%

Density: ≥10.2g/cm3



MoSi2 Rods

MoSi2  Heating Rods

Why do we use molybdenum disilicide, MoSi2 heating element? MoSi2 has good applications as for its attractive properties in the following: Moderate density which is 6.4g/cm3; high melting point referred 2230℃; excellent oxidation resistance as for its good temperature resistance; High modulus at elevated temperatures. As for these properties molybdenum disilicide has become the most commonly used commercially in electric heating elements.

More details please visit Molybdenum Disilicide Heating Element.

Its use as a structural ceramic is limited by poor characteristics in two key areas:

1. Low toughness at temperatures less than 1000℃ means that the material is very brittle at room temperature, and only becomes plastic at elevated temperature.

2. Poor creep resistance at temperatures above 1200℃.

Molybdenum Heating Element

Molybdenum Strip HeatingElement

We are able to provide many kinds specifications for you and also can be according to your required drawing.

Applications of Molybdenum Heating Element:

Used as part in the hydrog environment furnace, vacuum furnace

According to furnace design and operating temperature, we supply hot zones with heating elements in the form of molybdenum strip heaters, wire and rod elements, stranded-wire elements or mesh-heaters.



Molybdenum Heating Rods

1) Molybdenum Strip Heater

Material: pure molybdenum/ molybdenum alloy, such as MoLa/TZM etc.

Very fine shape

High mechanical and thermal stability

Low creep deformation

Supply heating elements according to user's drawing

2) Molybdenum heater wire and rod

Size: dia.0.3 - 3 mm x coil

dia. 3 - 11 mm x 6000 mm long

ery fine surface and density uniformity

Long life times

What is Molybdenum Target Used for?

What is MolybdenumTarget Used for?

As we all know that molybdenum has the excellent resistant properties to high temperature and corrosion, so Mo targets are widely used in the petroleum chemical industry, aviation, machine manufacturing, and electronics semiconductor industries and so on.

The following is the detail application of Mo target:



Big Size Molybdenum Sputtering Target

Used in plasma sputtering industry

With the electric field, electron collided with the argon atom molybdenum target when fly to the substrate, then argon atoms and electrics were ionized .The electrics fly to the substrate while argon atoms accelerate to bomb the target, the neutral atoms (or molecules) in the target deposit on the substrate and become the coating.

Since we can provide molybdenum sputtering target that made with molybdenum powder which purity is 99.95%. High quality products have been made after decades of procedures such as pressing, sintering, rolling, cutting and surface grinding. Super sputtering target (single heavy can be reached to 120kg) is available at present.

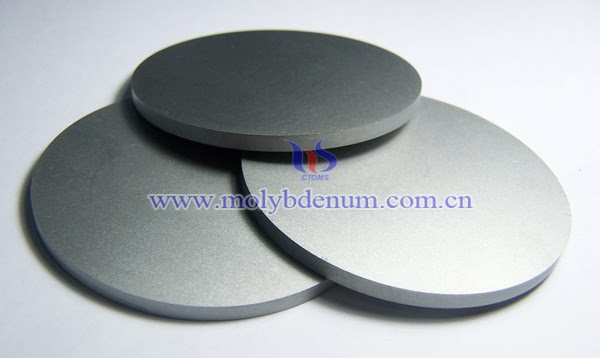

Do You Know Molybdenum Target?

Do You Know Molybdenum Target?

Molybdenum target also names molybdenum sputtering target, it ia made of high purity molybdenum, no less than 99.95%.

Mo target appearance: silver white metal luster molybdenum target

Mo sputtering target purity: Mo≥99.95%
Mo sputtering target density: 10.2g/cm3

Mo sputtering target supply state: Surface polishing, CNC machine processing

Mo sputtering target quality standard: GB/T 3876-2007( molybdenum & molybdenum alloy plate)

Molybdenum Target

Mo target production :

Materials -- CIP -- If induction sintering -- hot rolling -- annealing -- cold rolling -- annealing -- cutting -- machining -- molybdenum targets.

Mo target production equipments:

Cool isostation pressing machine(CIP), IF induction sintering furnace, four-high cold  mill, vacuum annealing furnace, W43G series straightener, hydraulic plate shears, water jet, wire cutting machine, CNC vertical turning machine, machining center, flat-stone mill.
